Sprinter Kit - Option 1 Kit includes: 1 x Large Evaporator, 1 x 3-Fan Skirt Condenser, TM16 Compressor - (engine bracket kit.. Product #: PA-KITS-01 In Stock

Sprinter Kit - Option 1


Product Code: PA-KITS-01
Availability: In Stock
Call for Pricing: (855) 881-1800
- +

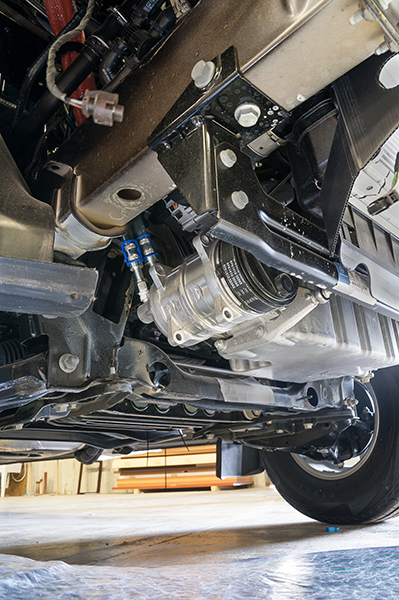

Kit includes: 1 x Large Evaporator, 1 x 3-Fan Skirt Condenser, TM16 Compressor - (engine bracket kit available if vehicle was not ordered with LBS kit), Booster Pump, Electric Water Valve, Hose, and all Required Fittings.

Option: Separate Floor Heater Available. Please call for information.

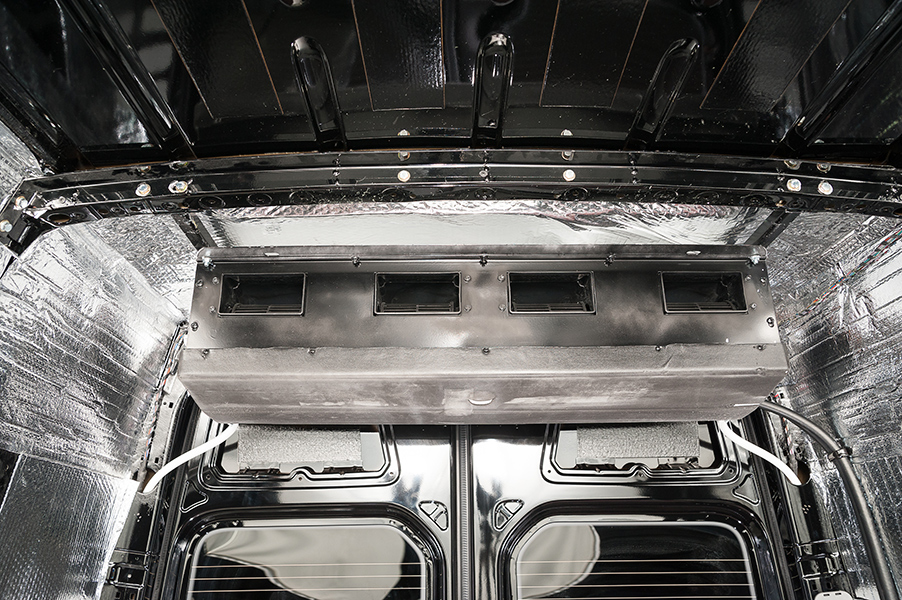

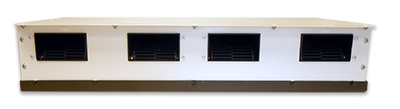

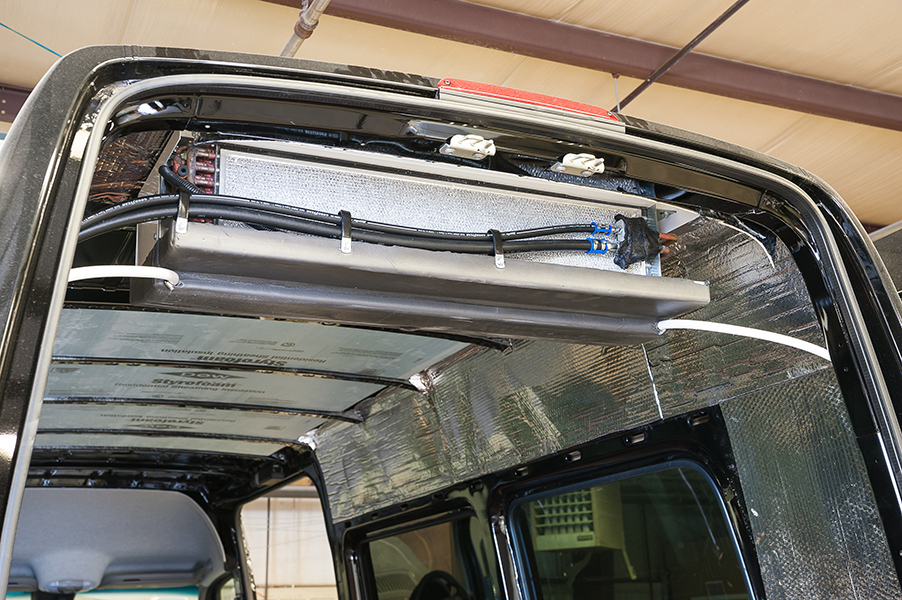

Large Evaporator:
  • 65,000 BTU
  • 18 amps @ 13.5 volts
  • 1600 CFM
  • Free Blowing Ceiling Mount Design
  • High Performance DCM Motors
  • Unique Drain Pan Design for Eliminating Condensation Issues
  • Evaporator Mounted Pressure Switches for Maximum Compressor Protection
  • Size: 8-1/2"H x 41-1/2"W x 15"D
  • Weight: 58 lbs
  • PART #: EV-5000

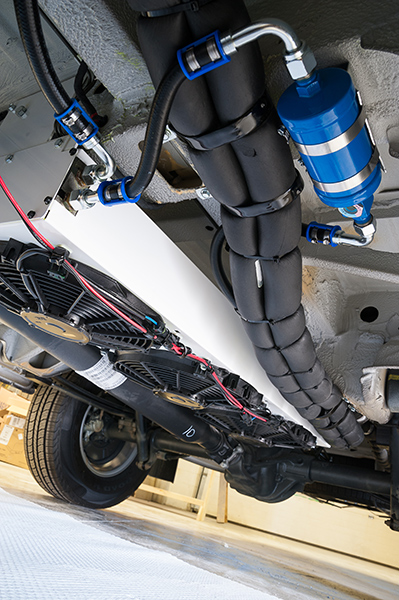

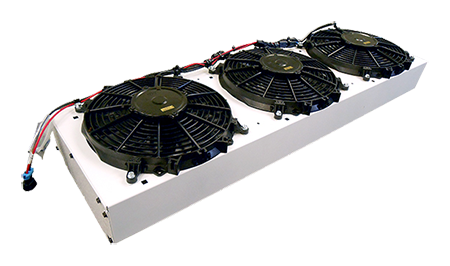

Condenser:
  • 65,000 BTU
  • 4200 CFM
  • 22.5 amps @ 13.5 volts
  • 33 lbs.
  • Powder Coated to Resist Corrosion
  • Size: 41-3/4"L x 13"W x 6"D (w/o brackets)
  • PART #: SC-1500

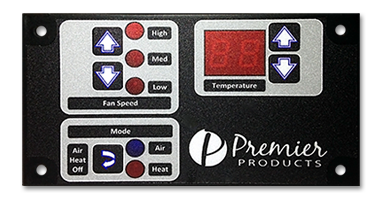

Digital Controller Kit:
  • Available in Automatic or Manual Control Mode
  • Kit Includes: Digital Controller, 2 Relay Boards, Y Harness Adapter, Temperature Probe and Wiring Harness
  • Size: 4-1/2"W x 2-1/2"H x 1"D
  • Part #: PA-CON-200
