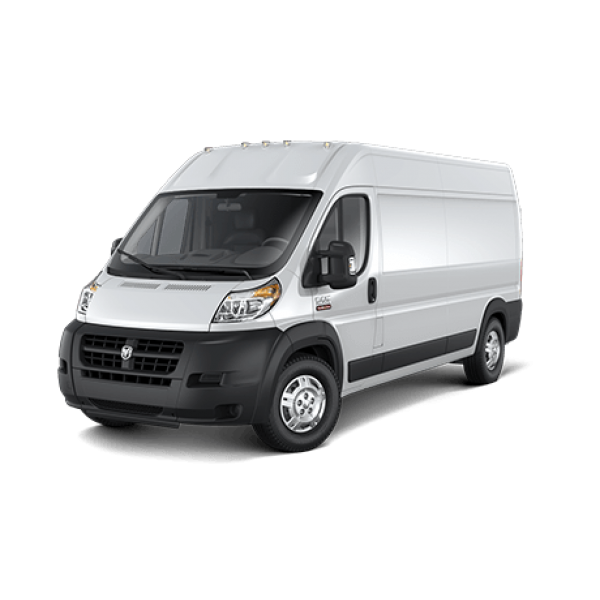

Chrysler Promaster Kit

Product Code: PA-KITG-01
Availability: Made to Order
Call for Pricing: (855) 881-1800
- +
Kit includes: 1 x Evaporator, 1 x 3-Fan Skirt Condenser, TM16 Compressor - (engine bracket kit available if vehicle was not ordered with LBS kit), Booster Pump, Electric Water Valve, Hose, and all Required Fittings.

Option: Separate Floor Heater Available. Please call for information.

Evaporator:
  • 45,000 BTU
  • 9 amps @ 13.5 volts
  • 800 CFM
  • Free Blowing Ceiling Mount Design
  • High Performance DCM Motor
  • Unique Drain Pan Design for Eliminating Condensation Issues
  • Evaporator Mounted Pressure Switches for Maximum Compressor Protection
  • Size: 28" x 18" x 8 ½"
  • Weight: 38 lbs
  • PART #: EV-3000
Condenser:
  • 55,000 BTU
  • 3 High Performance 9" Spal Fans
  • 3600 CFM
  • 18 amps @ 13.5 volts
  • Powder Coated to Resist Corrosion
  • Size: 30 ½" x 10 ½" x 6" (w/o brackets)
  • Weight: 28 lbs
  • PART #: SC-1000
Digital Controller Kit:
  • Available in Automatic or Manual Control Mode
  • Kit Includes: Digital Controller, 2 Relay Boards, Y Harness Adapter, Temperature Probe and Wiring Harness
  • Size: 4 ½"W x 2 ½"H x 1"D
  • Part #: PA-CON-200
