Kit includes: 1 x Extra Large Evaporator, 1 x Roof-Mount 3-Fan Condenser, Compressor Mounting Bracket, TM21 Compressor, Hose, Electric Water Valve, Booster Pump, Digital Controller Kit and all Required Fittings.
|
|
|

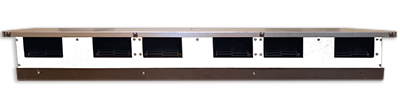

Extra Large Evaporator:
- 90,000 BTU cooling and 90,000 BTU heat
- 27 amps @ 13.5 volts
- 2400 CFM
- 3 High-Performance Motors
- Aluminum Fin Coil with Internally Enhanced Copper Tubing
- Free Blowing Ceiling Mount Design
- Evaporator Mounted Pressure Switches for Maximum Compressor Protection
- Size: 22-1/8"D x 59-1/4"W x 7-1/4"H
- Weight: 93 lbs.
- Part #: EV-7000
|
|

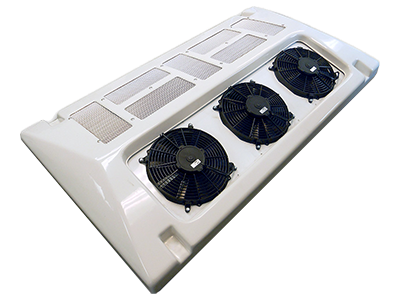

Roof-Mount 3-Fan Condenser:
- 95,000 BTU
- 34 amps @ 13.5 VDC
- 3960 CFM
- 3 12" High-Performance Spal Fans
- 4 Row Aluminum Fin Coil with Internally Enhanced Copper Tubing
- Lightweight, Aluminum Frame
- Low Profile, Aerodynamic ABS High Strength Cover
- Size: 8"H x 36-1/2"W x 64"L
- Weight: 66 lbs.
- Part #: RC-3000
|
|
Digital Controller Kit:
- Available in Automatic or Manual Control Mode
- Kit Includes: Digital Controller, Relay Board, Temperature Probe and Wiring Harness
- Size: 4-1/2"W x 2-1/2"H x 1"D
- Part #: PA-CON-200
|
|
